The new CONT.AIR is a handheld particle counter designed for cleanroom monitoring, industrial and health&safety applications, research and indoor air quality.

This instrument is used to detect, count and size the aerosol particles present in the air. Unlike a microbial air sampler, which gives the number and the type of micro-organism captured on the agar plate, the particle counter gives the number, and the size of the no-viable particles present in the air. These particles can be the transport agents for viable ones (micro-organisms).

  • Light, ergonomic and easy to use as a portable device.
  • The instrument is patented.
  • The instrument detects particles in a range from 0.3 to 25 µm across 6 pre-set channels (generally 0.3, 0.5, 1, 2, 5 µm). It operates at a flow rate of 0,1 CFM (2,83 l/m).
  • It provides data output both in standard cleanroom formats and in mass concentration (ug/m3).

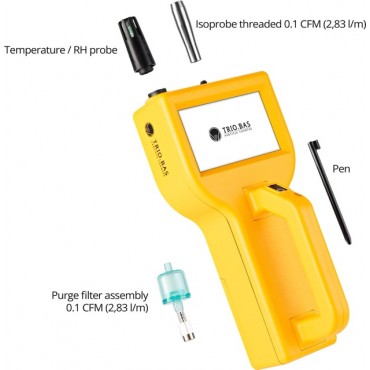

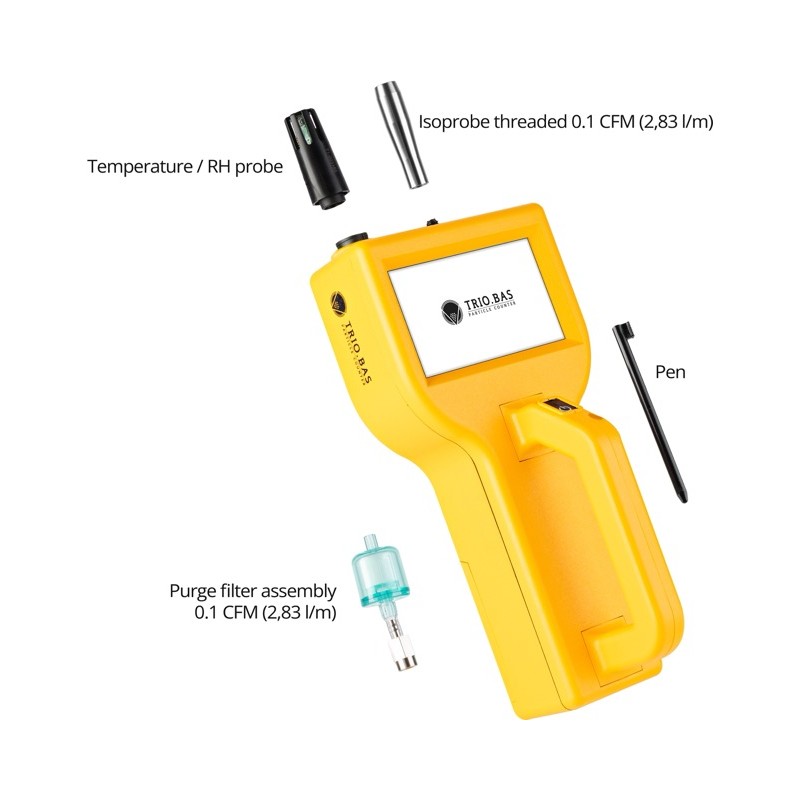

  • The possibility to integrate the instrument with temperature and relative humidity probes generates more detailed environmental assessments.
  • The firmware is user friendly, and the presence of a pen facilitates the use of the touch screen keyboard.

particles-plus-screen-001.jpg particles-plus-screen-002.jpg
particles-plus-screen-003.jpg particles-plus-screen-004.jpg

PERFORMANCES

  • Up to 45.000 records stored with particle counts, environmental data, locations and date/time
  • 1.000 sample locations (20 characters per name) and 50 recipes
  • Large, intuitive color touch screen display with an easy-to-use interface
  • A pen to better use the touch screen display for gloved operations
  • Possibility to save 32-character notes to a live sample record
  • Over 10 hours continuous sampling with a single charge
  • Integrated handle for one hand operation
  • Possibility to generates reports according to ISO 14644-1, EU GMP Annex 1 and FS 209E
  • Audible alarms and alarm management tools
  • Thermal printer as an optional accessory
  • Easy to clean and wipe down


Compatible with standard tripods
